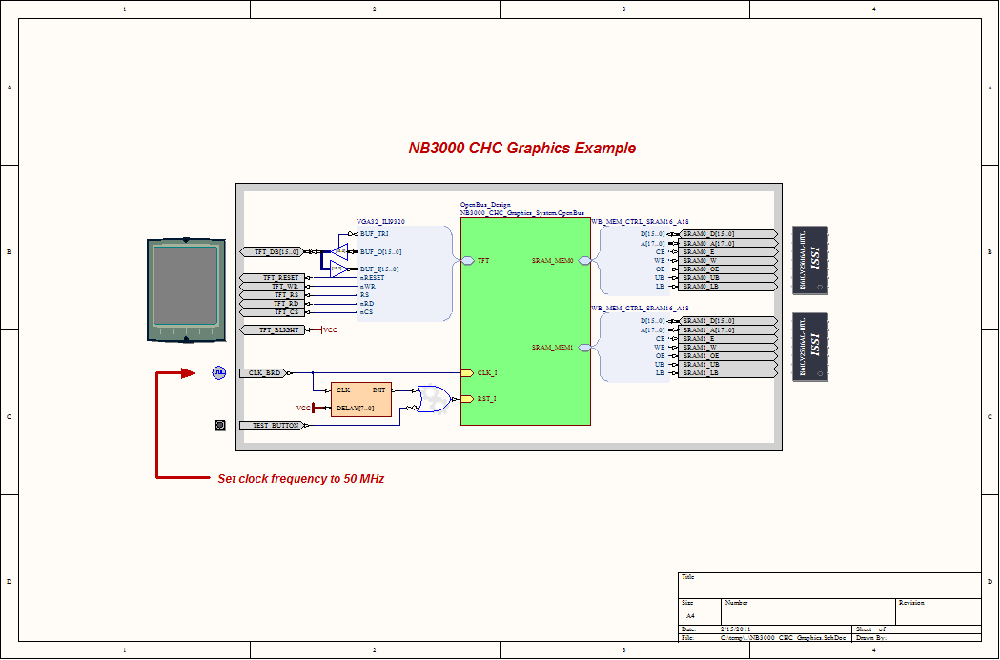

This NB3000-based example design tests the performance of the C-to-Hardware Compiler. It draws pixels, lines and circles on the board's TFT screen and displays the result of the test, textually, on the Terminal Instrument.
The design includes a TSK3000, as well as Terminal Instrument, ASP, VGA 32-bit ILI9320 Controller, and SRAM Controller components.
The associated embedded project demonstrates the use of the Graphics Context, ASP, and Serial Device I/O Context for serial input/output via the Terminal instrument. The graphic drivers in the Graphics Context are used to set the rotation of graphics, and draw string, pixel, line, circle, filled circle, sector, segment and arc, fill rectangle, and triangle entities on the TFT screen.
Altium Designer projects included in this download:
- NB3000_CHC_Graphics.PrjFpg
- NB3000_CHC_Graphics.PrjEmb
