This NB3000-based example design implements an MP3 Decoder, to play back
*.mp3 files stored on an SD card. Insert an SD card containing one or more
*.mp3 files into the NB3000's SD Card Reader. The MP3 file list will be displayed on the board's TFT screen. Simply touch the file required to have it played back. Either listen to the music through the NB3000's stereo speakers, or through an external audio receiver connected to the board's
LINE OUT jack.

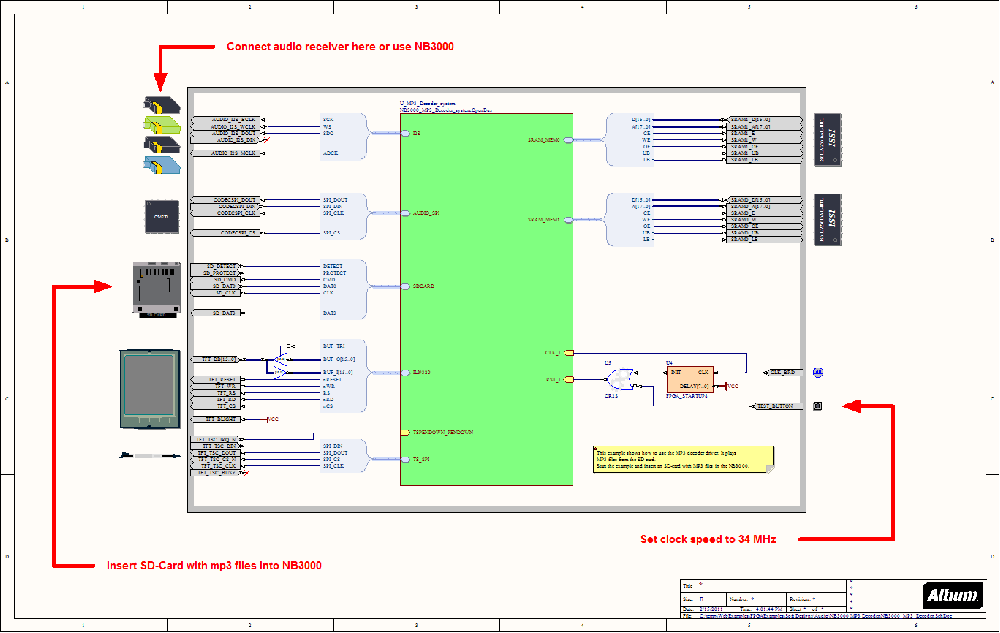

The design includes a TSK3000, as well as TFT, MP3 Decoder, Terminal Instrument, SD Card, SPI, I2S, TSPENDOWN, and SRAM Controller components.
The associated embedded project demonstrates use of the Audio Context, MP3 Decoder Driver, Storage System Context, GUI Context and Serial Device I/O Context for serial output via the Terminal instrument.
Altium Designer projects included in this download:
- NB3000_MP3_Decoder.PrjFpg
- NB3000_MP3_Decoder.PrjEmb
