This NB2-based example design displays a spinning 3-dimensional cube on the board's TFT panel. Two versions of the same source code are defined, one totally in software, and the other in hardware, generated through use of C-to-Hardware Compilation technology. A comparison of the speed difference between the two can be made, by pressing generic user switch
SW1 to run the software version, and generic user switch
SW2 to run the hardware version.

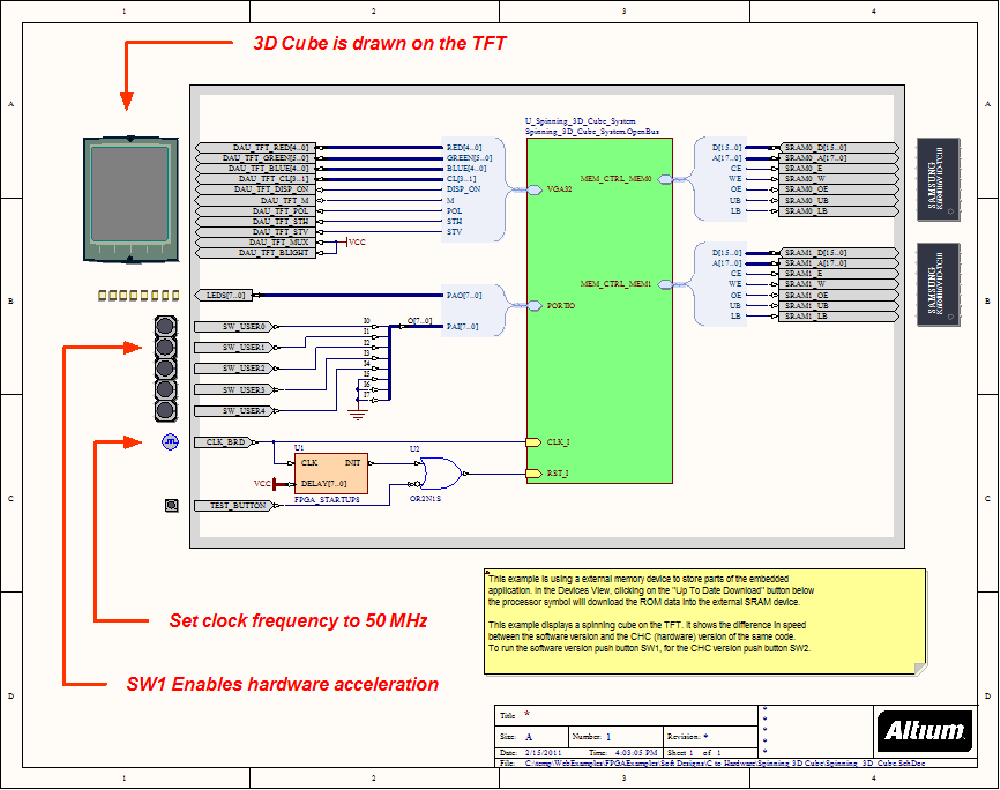

The design includes a TSK3000, as well as PRTIO, ASP, VGA 32-bit TFT Controller, and SRAM Controller components.
The associated embedded project demonstrates the use of the ASP and VGA TFT Driver.
Altium Designer projects included in this download:
- Spinning_3D_Cube.PrjFpg
- Spinning_3D_Cube.PrjEmb
