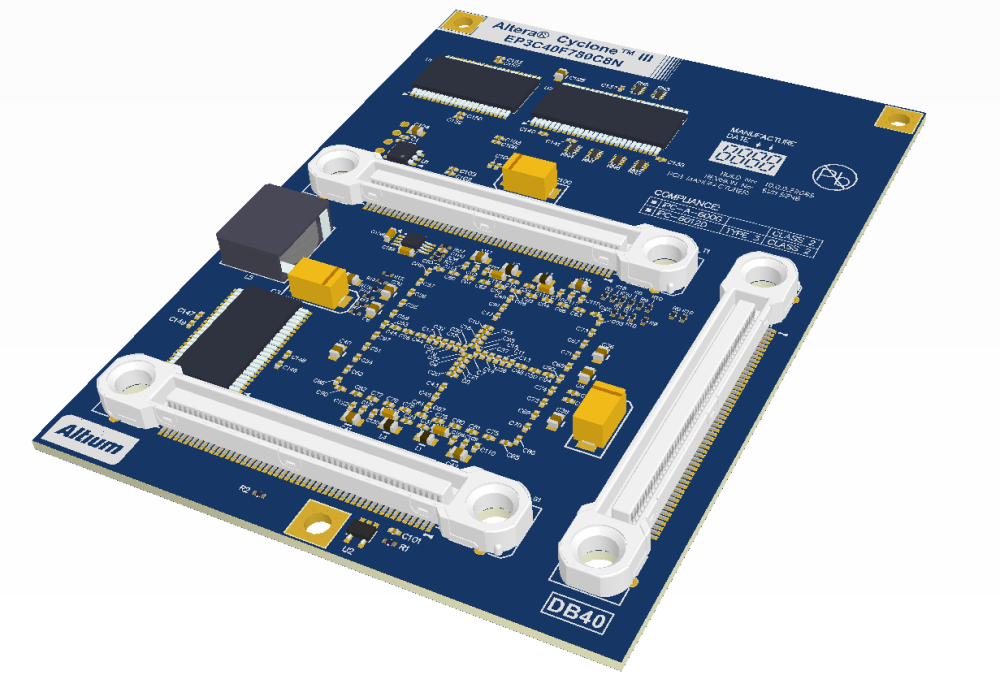

The Altera EP3C40F780C8N device on the daughter board is a member of the 1.2V Cyclone III family of FPGAs. The Cyclone III provides a low-cost, low-power and high-density solution for applications such as those targeted to the consumer electronics industry.
The entire Cyclone III family includes eight devices offering densities ranging from 5,136 to 119,088 Logic Elements. The EP3C40F780C8N offers 39,600 Logic Elements.
Daughter board features include:
- The following on-board memories are available for use by an FPGA design,
- 256K x 32-bit common-bus SRAM (1MByte)
- 16M x 32-bit common-bus SDRAM (64MByte)
- 16M x 16-bit common-bus Flash memory (32MByte)
- Dual 256K x 16-bit independent SRAM (512KByte each)
- 1-Wire® memory device used to store board ID and related information
- Three 100-way connectors for attachment to NB2DSK01 motherboard. These connectors provide:
- Interface to resources on the NB2DSK01 motherboard and plugged-in peripheral boards
- SPI bus interface
- I2C bus interface
- 1-Wire bus interface
- JTAG, power and additional control lines from the motherboard.
Note: To implement a design on this FPGA device you will require the relevant
vendor tools.
See Also: DB40 Altera Cyclone III Daughter Board

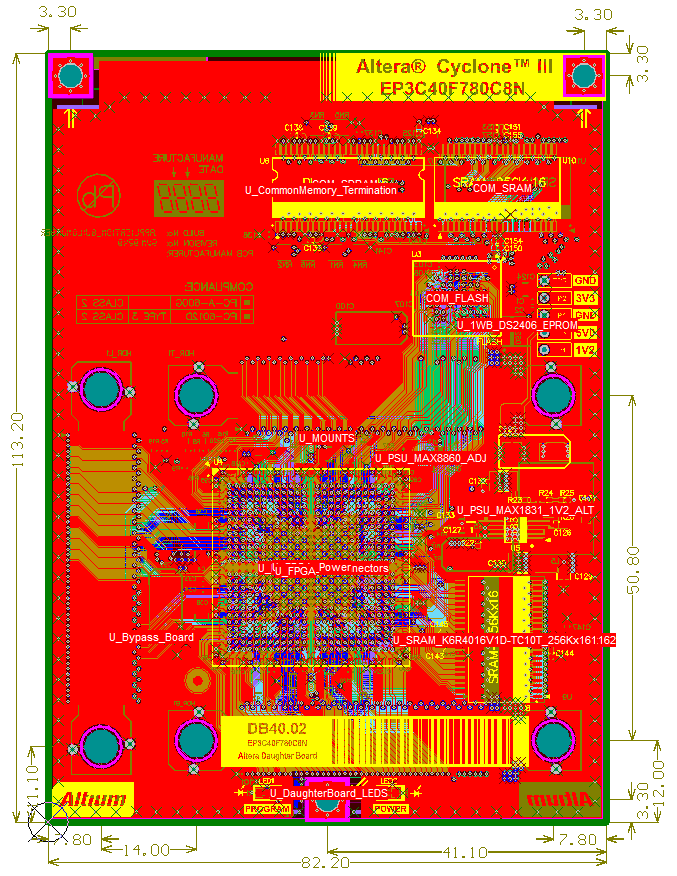

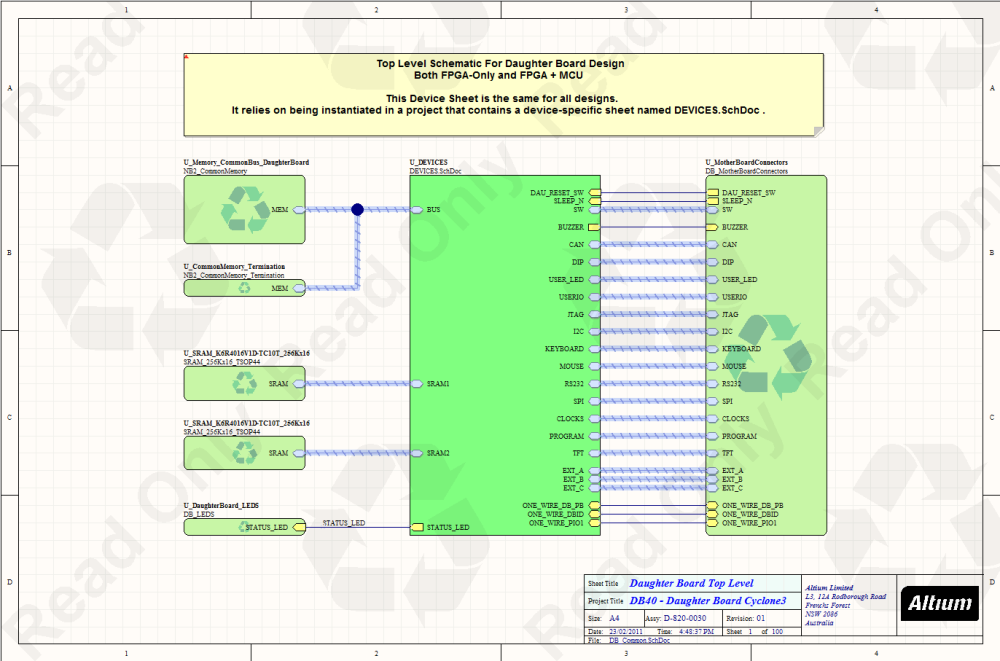

Altium Designer Projects included in this download:
