With the NanoBoard NB2 and the NanoBoard 3000 series, a large range of the peripherals available to the host FPGA are delivered on removable peripheral boards, providing a simple and cost-effective method for rapid prototyping of hardware concepts.
The NanoBoard NB2 caters for up to three peripheral boards (2 single width, 1 double width). The NanoBoard 3000 can accommodate a single peripheral board (single or double width).

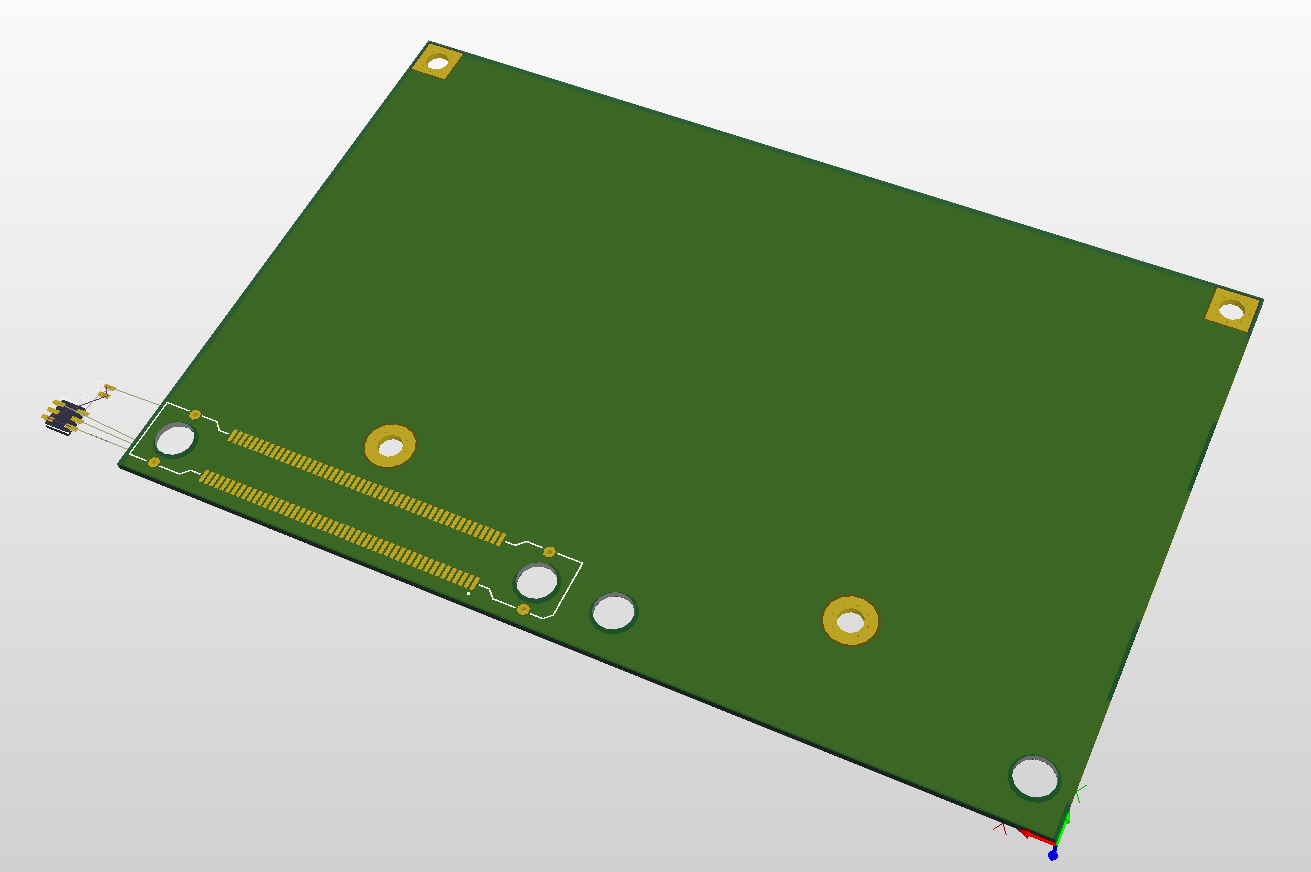

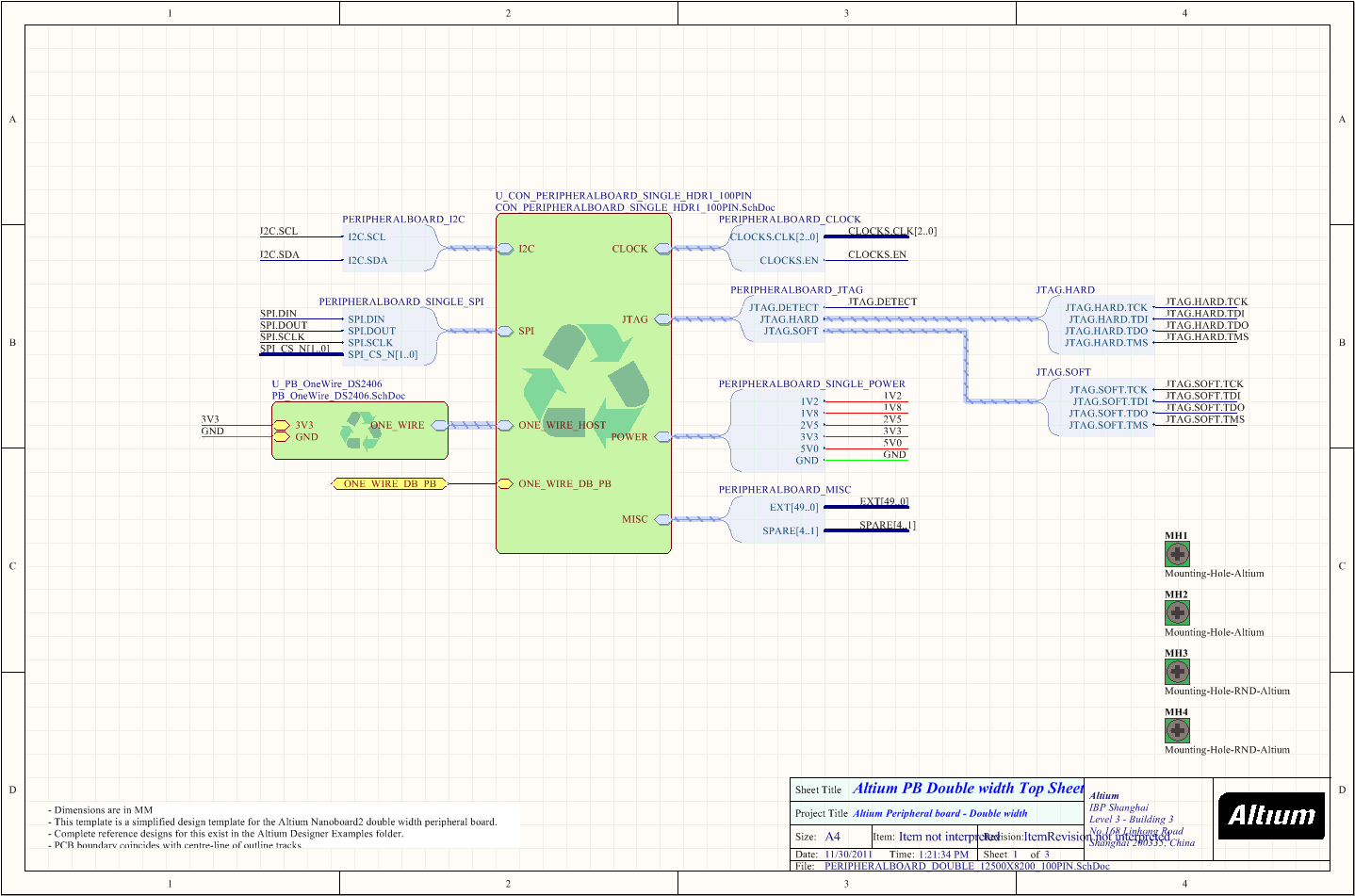

This template implements the interface between the NanoBoard and a double width Peripheral board, using a 100-pin high-reliability connector. It also includes the Peripheral board PCB, complete with height constraints.
Vault Item: PDE-0001-00015
